4. Network Configuration

4.1 Cable Connections

Please follow the instructions below to connect your LAN CAMERA to a computer or a network

and to choose a proper RJ-45 cable configuration for connections.

Physical specifications of the RJ-45 cable for Ethernet

Wire Type Cat. 5

Connector Type RJ-45

Max. Cable Length 30 m

Hub Wiring Configuration Straight Through

PC Wiring Configuration Cross Over

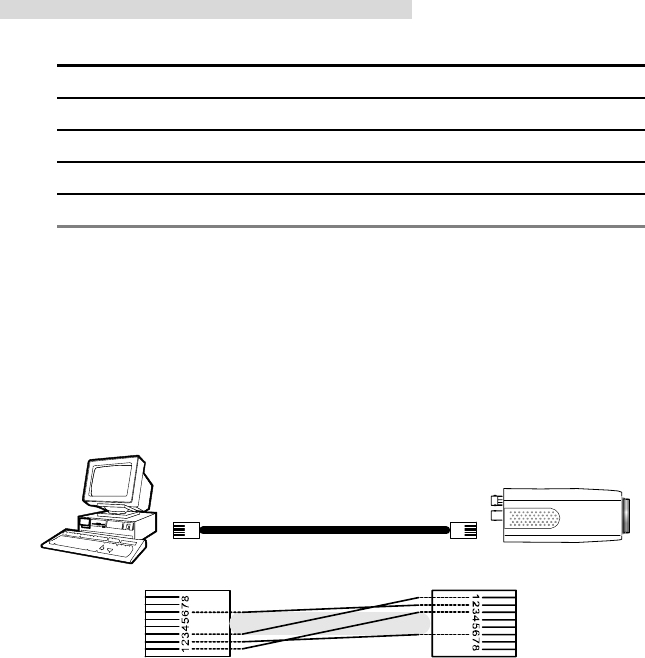

4.1.1 Connect to a computer

Use a crossover LAN cable to connect directly to a computer.

RJ-45

CROSSOVER CABLE

CROSSOVER CABLE PIN CONFIGURATION

LAN CAMERA

TO PC LAN CARD
